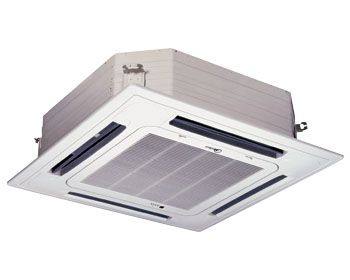

Dàn lạnh Cassett âm Trần 4 Cửa thổi ( indoor unit )

MODEL

MDV-D28Q4/(N2)

MDV-D28Q4/(N2)-B

MDV-D36Q4/(N2)

MDV-D36Q4/(N2)-B

MDV-D45Q4/(N2)

MDV-D45Q4/(N2)-B

MDV-D56Q4/(N2)(N1)

MDV-D56Q4/(N2)-B

Power supply

Ph-V-Hz

220-240V~,1PH, 50Hz

Cooling

Capacity

Btu/h

9000

12000

16000

18000

Input

W

92

92

95

100

Heating

Capacity

Btu/h

10000

13500

18000

19800

Input

W

92

92

95

100

ELECTRONICAL

Max. input consumption

W

126

126

126

126

Max. current

A

0.6

0.6

0.6

0.6

Starting current

A

3.6

3.6

3.6

3.6

TECHNICAL SPECIFICATION

Indoor unit

Dimension (W*H*D)

mm

840×240×840

840×240×840

840×240×840

840×240×840

Packing   (W*H*D)

mm

955*260*955

955*260*955

955*260*955

955*260*955

Net/Gross weight

Kg

22/29

22/29

25/32

25/32

Panel

Dimension (W*H*D)

mm

950×40×950

950×40×950

950×40×950

950×40×950

Packing   (W*H*D)

mm

1030×145×1030

1030×145×1030

1030×145×1030

1030×145×1030

Net/Gross weight

Kg

6/11

6/11

6/11

6/11

Application area

m2

18-36

22-45

28-56

35-71

Piping size

Liquid/ Gas side

Mm

(inch)

φ9.53 (3/8’)/ φ19 (3/4’)

R22，R407C: φ9.53 (3/8’)/ φ19 (3/4’)

R410A: φ9.53 (3/8’)/ φ16 (5/8’)

Qty per 20’/40’/40’HQ

Pieces

62/132/135

MODEL

MDV-D71Q4/(N2)(N1)

MDV-D71Q4/(N2)-B

MDV-D80Q4/(N2)(N1)

MDV-D80Q4/(N2)-B

MDV-D90Q4/(N2)(N1)

MDV-D90Q4/(N2)-B

MDV-D112Q4/(N2)(N1)

MDV-D112Q4/(N2)-B

Power supply(Ph-V-Hz)

220-240V~, 1PH, 50Hz

NOMINAL CAPACITY

Cooling

Capacity

Btu/h

24000

28000

30000

40000

Input

W

100

100

130

145

Heating

Capacity

Btu/h

31000

31000

33000

44000

Input

W

100

100

130

145

ELECTRONICAL

Max. Input consumption

W

126

126

170

210

Max. Current

A

0.77

0.77

1.1

1.1

Starting current

A

4.2

4.2

6.0

6.0

TECHNICAL SPECIFICATION

Indoor unit

Dimension (W*H*D)

mm

840×240×840

840×310×840

Packing   (W*H*D)

mm

955*260*955

955*325*955

Net/Gross weight

Kg

25/32

45/56

Panel

Dimension (W*H*D)

mm

950×40×950

950×40×950

Packing   (W*H*D)

mm

1030×145×1030

1030×145×1030

Net/Gross weight

Kg

6/11

6/11

6/11

6/11

Application area

m2

40-80

45-90

56-112

70-140

Refrigerant size

Liquid/ Gas side

mm(inch)

R22，R407C: φ9.53 (3/8’)/ φ19 (3/4’)

R410A: φ9.53 (3/8’)/ φ16 (5/8’)

Qty per 20’/40’/40’HQ

Pieces

62/132/135
