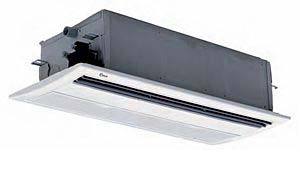

Dàn lạnh âm trần Caseet một cửa thổi (One way cassette type ) indoor unit

MODEL

MDVD28Q1/B(N2)

MDVD28Q1/(N2)-B

MDVD36Q1/B(N2)

MDVD36Q1/(N2)-B

MDVD45Q1/B(N2)

MDVD45Q1/(N2)-B

MDVD56Q1/B(N2)

MDVD56Q1/(N2)-B

MDVD71Q1/B(N2)

MDVD71Q1/(N2)-B

Power supply

Ph-V-Hz

220-240V~,1PH, 50Hz

NOMINAL CAPACITY

Cooling

Capacity

Btu/h

9000

12000

16000

18000

24000

Input

W

60

66

70

75

90

Heating

Capacity

Btu/h

10000

13500

18000

20000

27000

Input

W

60

66

70

75

90

ELECTRONICAL

Max. input consumption

W

69

69

78

126

126

Max. current

A

0.34

0.34

0.38

0.60

0.60

Starting current

A

2.2

2.2

3.2

3.2

3.6

INDOOR MOTOR

Model

YSK20-4

YSK54-4

YSK55-4

Type

centrifugal fan

Brand

Welling

Input

W

44±6

44±6

50±6

50±6

82±10

Capacitor

uF

1.2/450v

1.2/450v

2.0/450v

2.0/450v

2.5/450v

Speed(hi/mi/lo)

r/min

980/820/770

930/830/730

1180/990/865

INDOOR COIL

a.Number of rows

2

3

3

3

3

b.Tube pitch(a)x row pitch(b)

mm

25.4x22

25.4x22

25.4X22

25.4X22

25.4X22

c.Fin spacing

mm

1.6

1.6

1.7

1.7

1.7

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type

mm

φ9.53x0.35 Innergroove tube

f.Coil length x height x width

mm

600 x216x44

600x229x66

1150X305X44

1150X305X66

g.Number of circuits

1

1.5

4

4

4

Indoor air flow (Hi/Mi/Lo)

m3/h

470/390/320

500/420/350

780/600/580

780/600/580

1080/910/850

Indoor unit

Dimension (W*H*D)

mm

850×235×400

1200×198×655

Packing   (W*H*D)

mm

1080X310X460

1380X265X775

Net/Gross weight

Kg

23/27

23/27

31/38

31/38

31/38

panel

Dimension (W*H*D)

mm

1050x18x470

1420×10×755

Packing   (W*H*D)

mm

1120x172x540

1500×110×870

Net/Gross weight

Kg

4/7

4/7

9/12

9/12

9/12

Piping size

Liquid/ Gas side

mm(inch)

φ9.53 (3/8’)/ φ19 (3/4’)

Qty per 20’/40’/40HQ

Pieces

115/238/268

69/145/165
